Custom Retaining Wall in Charlotte, NC
The Challenge
This Charlotte, NC homeowner needed an outdoor space that solved a specific problem — drainage, sloped grading, an underused yard, or a transition between indoor and outdoor living — without compromising the look of the home. Our team scoped the site, identified the constraints, and proposed a design built around the way the family actually uses the space.
The Design & Material Selection
For this project we specified Belgard pavers, chosen for durability in Charlotte's freeze-thaw cycles and for the way the color and texture sit against the home's existing architecture. The layout was drawn to match the home's sight lines, the lawn's natural grade, and the way the family moves between the house, patio, and yard.

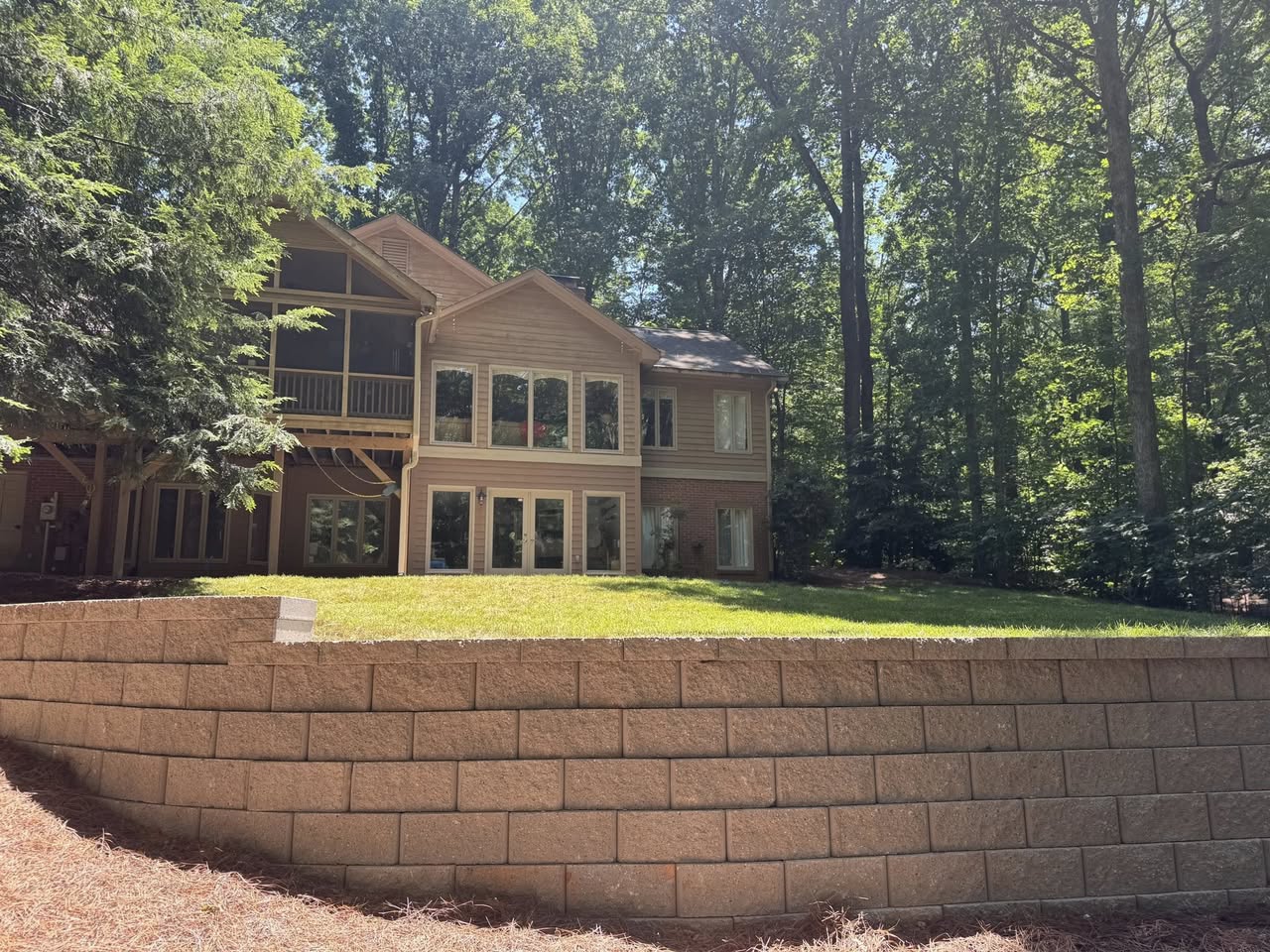

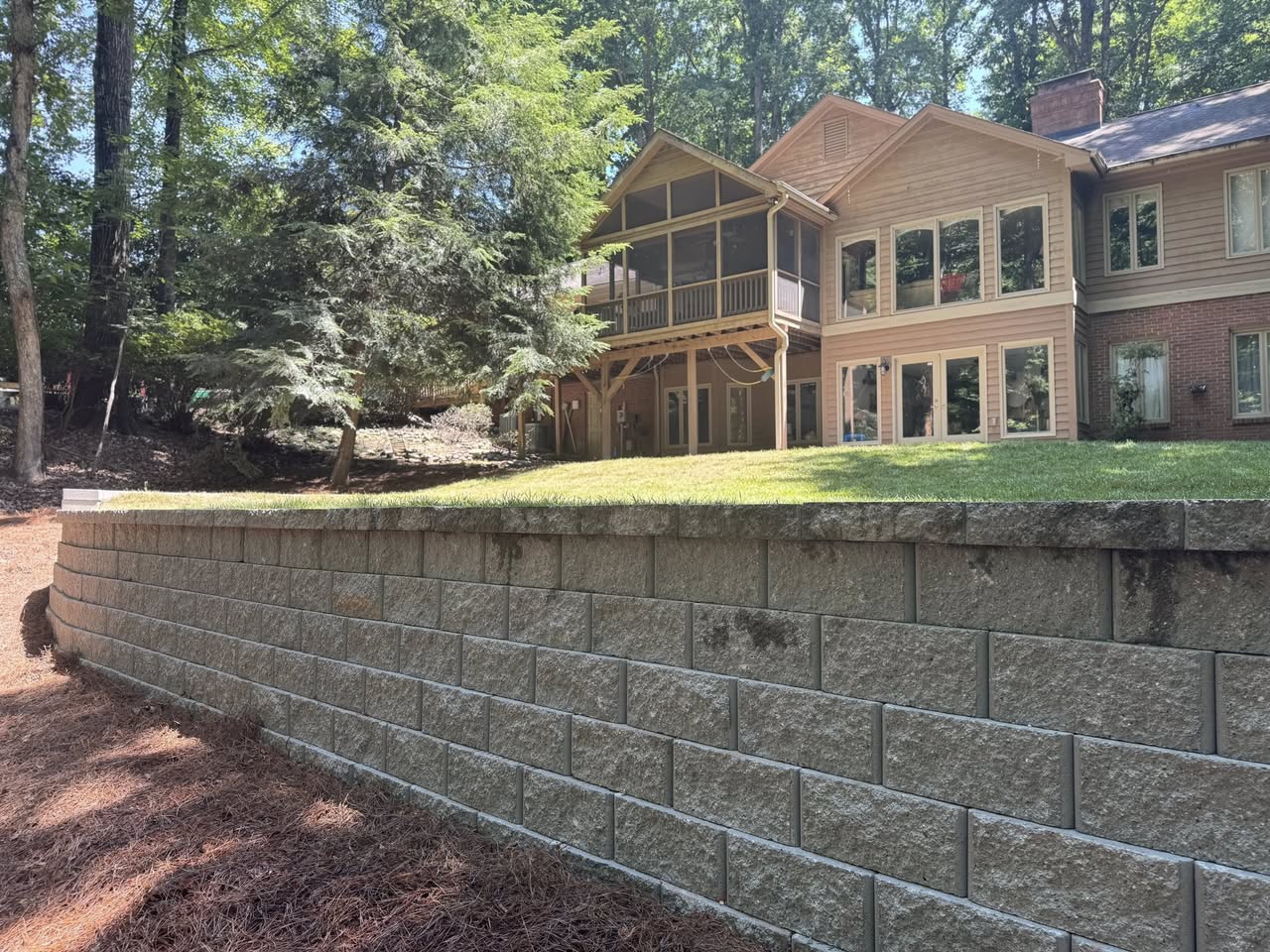

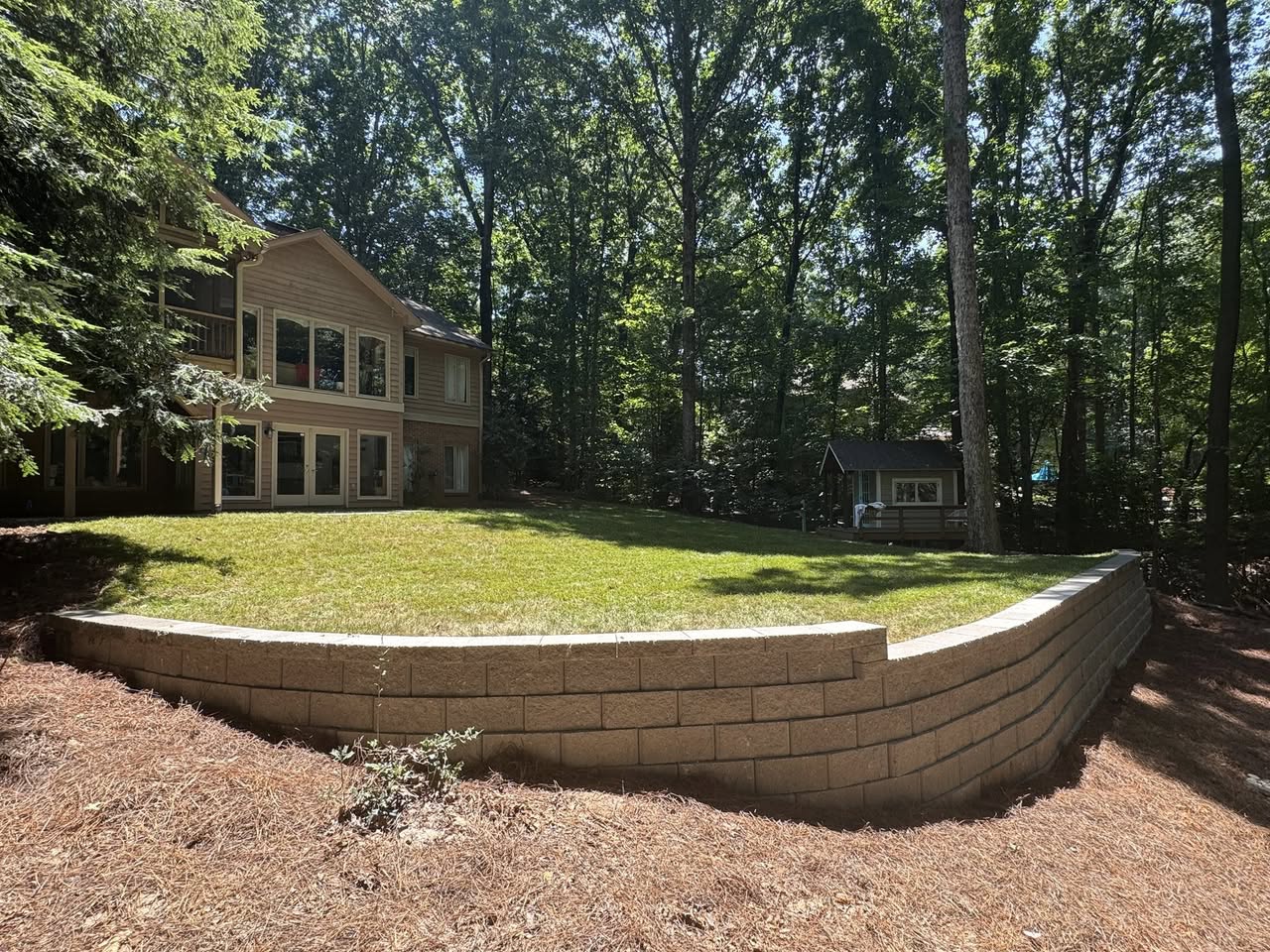

The Final Result
When it comes to enhancing a sloped property, Building a well-constructed residential Retaining Wall in Charlotte is a project that perfectly marries engineering with artistry. The process involves several critical steps that must be expertly executed to ensure the wall is not only beautiful but also structurally sound and capable of lasting a lifetime. From the initial design to the final block, each component plays a vital role in the wall’s performance and longevity.
The journey begins with meticulous designing. This phase goes beyond aesthetics; it involves a thorough site assessment to calculate the load and pressure the wall will need to withstand. A professional plan will determine the wall’s necessary height, setback (or batter), and the requirements for reinforcement. Following the design, the creation of proper footings is the essential first step of construction. This involves excavating a precise trench and installing a compacted base of aggregate, often specified as #67 stone, to create a solid, level foundation that prevents the wall from sinking or shifting over time.
For taller or more heavy-duty walls, incorporating Geogrid is a non-negotiable step for safety and stability. This high-strength polymer mesh is laid in horizontal layers, extending from the wall face back into the soil. This technique effectively reinforces the soil mass behind the wall, tying it together into a single, cohesive structure that dramatically increases its strength and resistance to failure. To manage the immense force of water pressure, comprehensive drainage solutions are integrated. A perforated drain pipe is placed behind the wall’s base and backfilled with more #67 stone, which allows groundwater to flow freely to the pipe and be channeled safely away, preventing hydrostatic pressure from building up and compromising the wall.
The visible component that brings the beauty is the choice of a gorgeous, high-quality block like the Belgard Diamond Pro II PS Gray. This engineered block system is renowned for its strength, durability, and natural stone appearance. The “PS” often refers to a rear-lip or pin system that ensures a secure, interlocking connection between courses. The versatile gray color provides a sophisticated, modern look popular in Charlotte landscapes. This combination of unseen engineering and visible beauty is what defines a truly professional installation, perfectly Making Homes More Beautiful® from the ground up.
